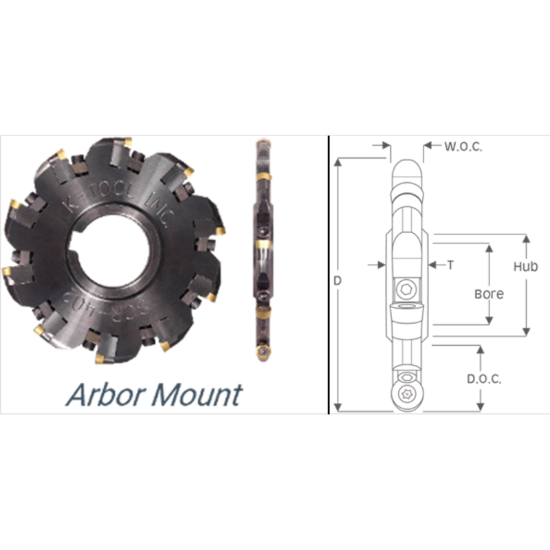

Picture of K-Tool SCR-504  Milling Cutter 5.000 Cutter Diameter 1.250 Face Mill

K-Tool SCR-504  Milling Cutter 5.000 Cutter Diameter 1.250 Face Mill

ANSI: SCR-504

ISO: SCR-504

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSCR-504
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Features And Benefits

Arbor Mount - Full Radius Slotting Cutters - Ground & Molded Inserts Available - Round Inserts Reduce Cutting Pressure

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling
Made In USA Yes
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Neck Dia 1.6200
Tool Width 0.5000
Flutes/Inserts 8
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Face Mill/Shell Mill
Depth Of Cut Max 1.5900
Cutter Dia 5.0000 127.00MM
Cutting & Machining Properties
Insert Style RC
Seat/Nest 435R
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Clamp/Wedge 3
Insert Screw 838T
Clamp Screw 10
