K-Tool SCR-403 Milling Cutter 4.000 Cutter Diameter 1.250 Face Mill

ANSI: SCR-403

ISO: SCR-403

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSCR-403
Delivery date: 3-5 days
$834.37

Features And Benefits

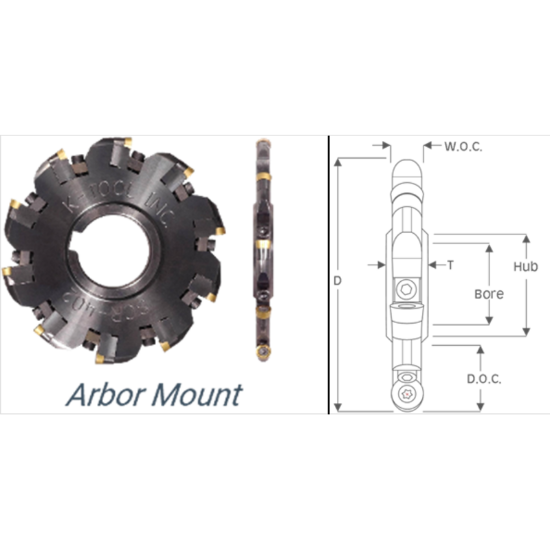

Arbor Mount - Full Radius Slotting Cutters - Ground & Molded Inserts Available - Round Inserts Reduce Cutting Pressure

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Slot Milling
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Made In USA Yes
Dimensional Specifications
Neck Dia 1.6200
Flutes/Inserts 8
Depth Of Cut Max 1.0900
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Tool Width 0.3750
Cutter Dia 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Round
Insert Style RC
Seat/Nest 325R
Fasteners & Connectors
Clamp Screw 8
Insert Screw 538T
Clamp/Wedge 2
