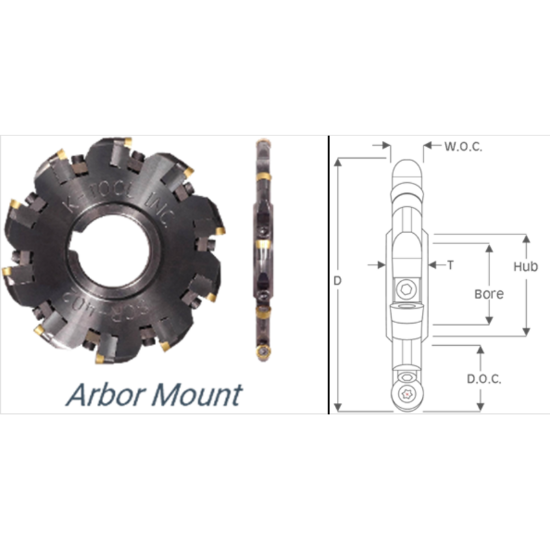

Picture of K-Tool SCR-302 Milling Cutter 3.000 Cutter Diameter 1.000 Face Mill

K-Tool SCR-302 Milling Cutter 3.000 Cutter Diameter 1.000 Face Mill

ANSI: SCR-302

ISO: SCR-302

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSCR-302
Delivery date: 3-5 days
$688.76

Features And Benefits

Arbor Mount - Full Radius Slotting Cutters - Ground & Molded Inserts Available - Round Inserts Reduce Cutting Pressure

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Package Size 1
Insert Type Positive
Application Slot Milling
Made In USA Yes
Dimensional Specifications
Neck Dia 1.4000
Tool Material Steel
Machine Side Connection Type Face Mill/Shell Mill
Tool Width 0.2500
Depth Of Cut Max 0.7500
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 8
Cutter Dia 3.0000 76.20MM
Cutting & Machining Properties
Insert Style RC
Seat/Nest 22R
Insert Shape/Cutter Pocket Shape Round
Fasteners & Connectors
Insert Screw 314T
Clamp/Wedge 15
Clamp Screw 612
