Picture of K-Tool SCR-1005 Milling Cutter 10.00 Cutter Diameter 1.500 Face Mill

K-Tool SCR-1005 Milling Cutter 10.00 Cutter Diameter 1.500 Face Mill

ANSI: SCR-1005

ISO: SCR-1005

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSCR-1005
Delivery date: 3-5 days
$1,571.37

Features And Benefits

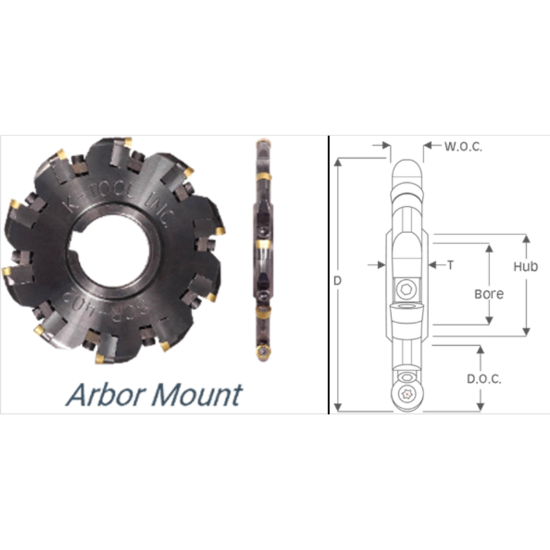

Arbor Mount - Full Radius Slotting Cutters - Ground & Molded Inserts Available - Round Inserts Reduce Cutting Pressure

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Made In USA Yes
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Neck Dia 2.0000
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Depth Of Cut Max 3.6870
Flutes/Inserts 8
Tool Width 0.7500
Cutter Dia 10.0000 254.00MM
Machine Side Connection Size 1.5000 38.10MM
Cutting & Machining Properties
Insert Style RC
Insert Shape/Cutter Pocket Shape Round
Seat/Nest 64R
Fasteners & Connectors
Clamp/Wedge 4
Insert Screw 1012T
Clamp Screw 5161D
