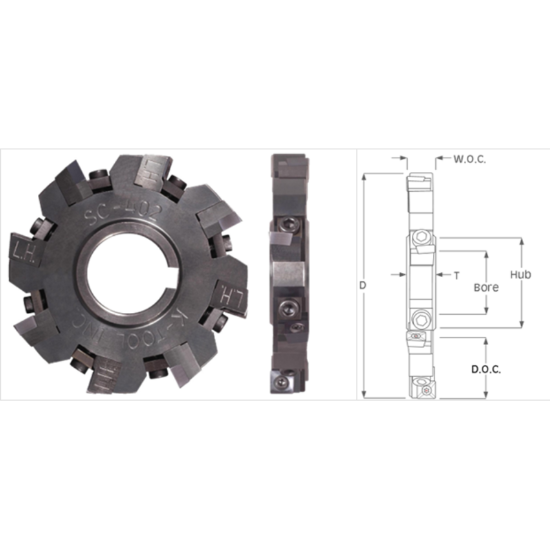

Picture of K-Tool SC-502 Milling Cutter 5.000 Cutter Diameter 1.250 Face Mill

K-Tool SC-502 Milling Cutter 5.000 Cutter Diameter 1.250 Face Mill

ANSI: SC-502

ISO: SC-502

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSC-502
Delivery date: 3-5 days
$965.69

Features And Benefits

Arbor Mount Slotting Cutters / Half Side Mills K-Tool, Inc. slotting cutters will ship direct from the factory. All cutters will be preset at no charge using an indicator to ensure accuracy. Choose from the options below when ordering. - Full Slot - specify W.O.C. when ordering (.250 - 1.187)- Half Side Mill - Specify L.H.or R.H. when ordering (Please allow 1 - 2 business days for shipping)

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Shipping State Pennsylvania
Made In USA Yes
Insert Type Positive
Application Slot Milling
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 10
Tool Width 0.5300 - 0.6870
Cutter Dia 5.0000 127.00MM
Depth Of Cut Max 1.5900
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Seat/Nest 332C-RH/LH
Fasteners & Connectors
Insert Screw 538T
Clamp/Wedge 3
Clamp Screw 10
