Picture of K-Tool SC-403 Milling Cutter 4.000 Cutter Diameter 1.250 Face Mill

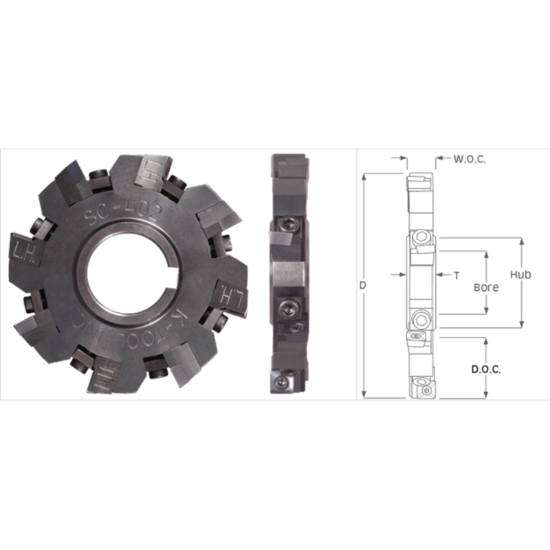

K-Tool SC-403 Milling Cutter 4.000 Cutter Diameter 1.250 Face Mill

ANSI: SC-403

ISO: SC-403

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSC-403
Delivery date: 3-5 days
$834.37

Features And Benefits

Arbor Mount Slotting Cutters / Half Side Mills K-Tool, Inc. slotting cutters will ship direct from the factory. All cutters will be preset at no charge using an indicator to ensure accuracy. Choose from the options below when ordering. - Full Slot - specify W.O.C. when ordering (.250 - 1.187)- Half Side Mill - Specify L.H.or R.H. when ordering (Please allow 1 - 2 business days for shipping)

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Shipping State Pennsylvania
Insert/Tool Tool
Insert Type Positive
Application Slot Milling
Package Size 1
Made In USA Yes
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Tool Width 0.6870 - 0.9370
Depth Of Cut Max 1.0600
Flutes/Inserts 8
Machine Side Connection Type Face Mill/Shell Mill
Cutter Dia 4.0000 101.60MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Seat/Nest 432C-RH/LH
Insert Style SP
Fasteners & Connectors
Clamp Screw 10
Clamp/Wedge 3
Insert Screw 638T
