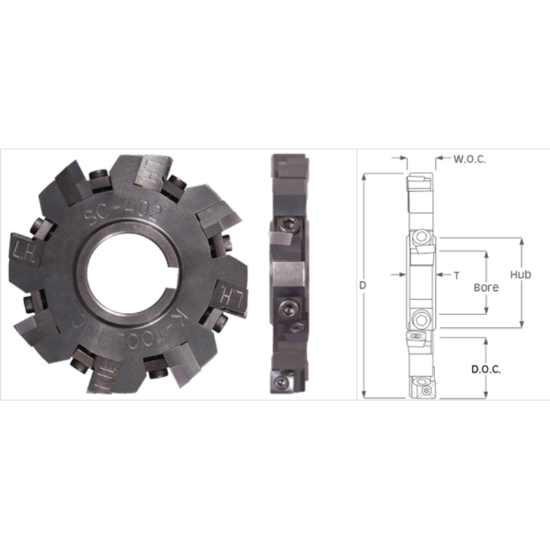

Picture of K-Tool SC-400 Milling Cutter 4.000 Cutter Diameter 1.250 Face Mill

K-Tool SC-400 Milling Cutter 4.000 Cutter Diameter 1.250 Face Mill

ANSI: SC-400

ISO: SC-400

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSC-400
Delivery date: 3-5 days
$834.37

Features And Benefits

Arbor Mount Slotting Cutters / Half Side Mills K-Tool, Inc. slotting cutters will ship direct from the factory. All cutters will be preset at no charge using an indicator to ensure accuracy. Choose from the options below when ordering. - Full Slot - specify W.O.C. when ordering (.250 - 1.187)- Half Side Mill - Specify L.H.or R.H. when ordering (Please allow 1 - 2 business days for shipping)

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Insert/Tool Tool
Package Size 1
Insert Application Roughing, Semi Finishing
Insert Type Positive
Application Slot Milling
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 10
Cutter Dia 4.0000 101.60MM
Tool Width 0.3400 - 0.4300
Depth Of Cut Max 1.0900
Machine Side Connection Type Face Mill/Shell Mill
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Seat/Nest 222C-RH/LH
Fasteners & Connectors
Clamp/Wedge 2
Insert Screw 314T
Clamp Screw 8
