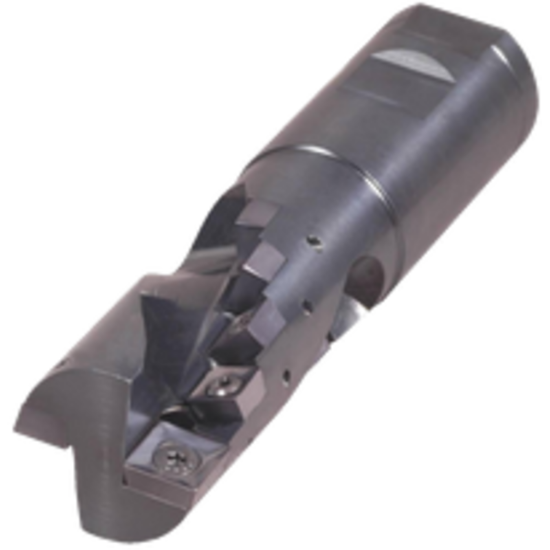

Picture of K-Tool SB-202 Milling Cutter 90.0°, Corn Cob 2.000 Cutter Diameter 1.250 Weldon

K-Tool SB-202 Milling Cutter 90.0°, Corn Cob 2.000 Cutter Diameter 1.250 Weldon

ANSI: SB-202

ISO: SB-202

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSB-202
Delivery date: 3-5 days
$882.61

Features And Benefits

Stockbusters - Staggered inserts for reduced cutting pressure

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Shipping State Pennsylvania
Insert Type Positive
Application Long Edge Milling, Side Milling
Package Size 1
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Neck Length 3.0000 76.20MM
Depth Of Cut Max 2.5000
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 2.0000 50.80MM
Overall Len 5.6900 144.53MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Flutes/Inserts 22
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 638T,538T
