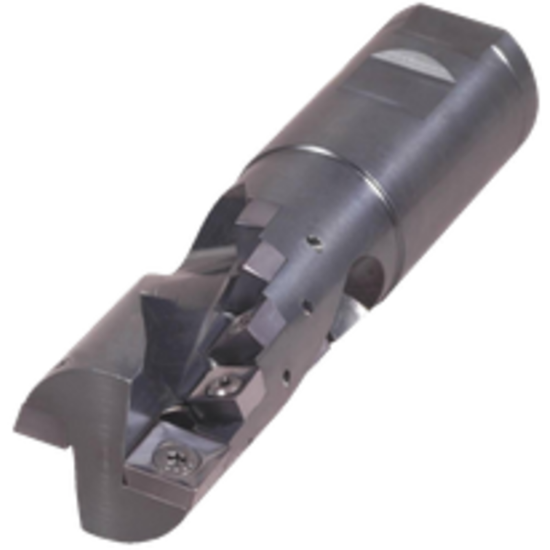

Picture of K-Tool SB-150 Milling Cutter 90.0°, Corn Cob 1.500 Cutter Diameter 1.250 Weldon

K-Tool SB-150 Milling Cutter 90.0°, Corn Cob 1.500 Cutter Diameter 1.250 Weldon

ANSI: SB-150

ISO: SB-150

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSB-150
Delivery date: 3-5 days
$679.83

Features And Benefits

Stockbusters - Staggered inserts for reduced cutting pressure

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Application Long Edge Milling, Side Milling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Made In USA Yes
Shipping State Pennsylvania
Dimensional Specifications
Neck Length 3.0000 76.20MM
Overall Len 5.2500 133.35MM
Depth Of Cut Max 2.5000
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 17
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 638T,538T
