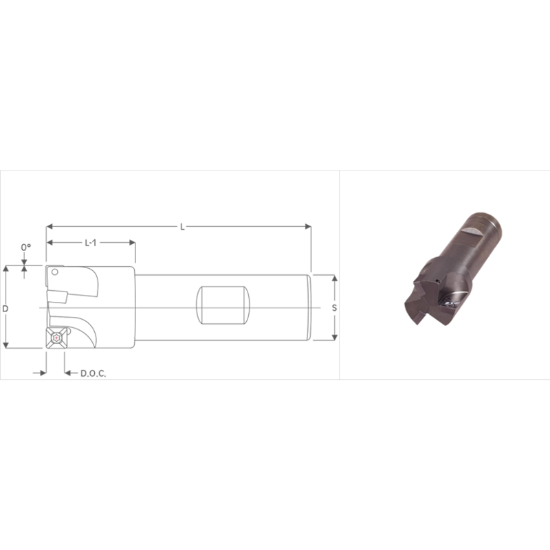

Picture of K-Tool SA-500 Milling Cutter 90.0° 0.500 Cutter Diameter 0.500 Weldon

K-Tool SA-500 Milling Cutter 90.0° 0.500 Cutter Diameter 0.500 Weldon

ANSI: SA-500

ISO: SA-500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSA-500
Delivery date: 3-5 days
$93.80

Features And Benefits

Super Alloy Mills - 90° Square Shoulder Within .001 - 4 Cutting Edges Per Insert

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Made In USA Yes
Package Size 1
Dimensional Specifications
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Depth Of Cut Max 0.2150
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.2500 57.15MM
Tool Over Hang 0.6250
Tool Material Steel
Machine Side Connection Type Weldon
Flutes/Inserts 1
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 300T
