Picture of K-Tool SA-2500 Milling Cutter 90.0° 2.500 Cutter Diameter 1.000 Face Mill

K-Tool SA-2500 Milling Cutter 90.0° 2.500 Cutter Diameter 1.000 Face Mill

ANSI: SA-2500

ISO: SA-2500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSA-2500
Delivery date: 3-5 days
$355.55

Features And Benefits

Super Alloy Mills - 90° Square Shoulder Within .001 - 4 Cutting Edges Per Insert

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Application Side Milling, Face Milling
Insert Application Semi Finishing, Roughing
Made In USA Yes
Insert Type Positive

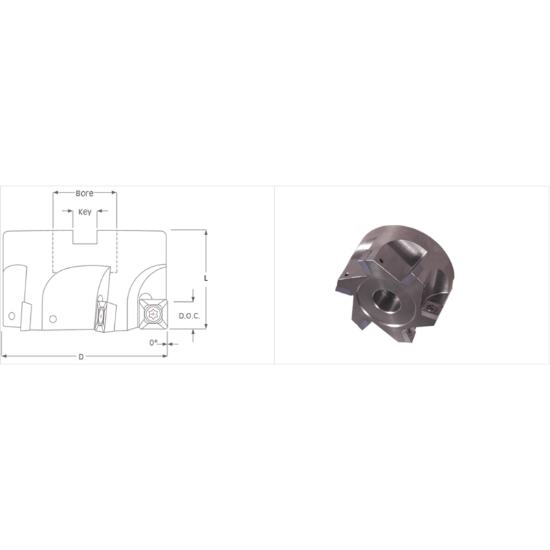

Dimensional Specifications
Cutter Dia 2.5000 63.50MM - 2-1/2
Overall Len 1.6250 41.28MM
Tool Material Steel
Flutes/Inserts 5
Depth Of Cut Max 0.4650
Machine Side Connection Size 1.0000 25.40MM
Machine Side Connection Type Face Mill/Shell Mill
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 638T
