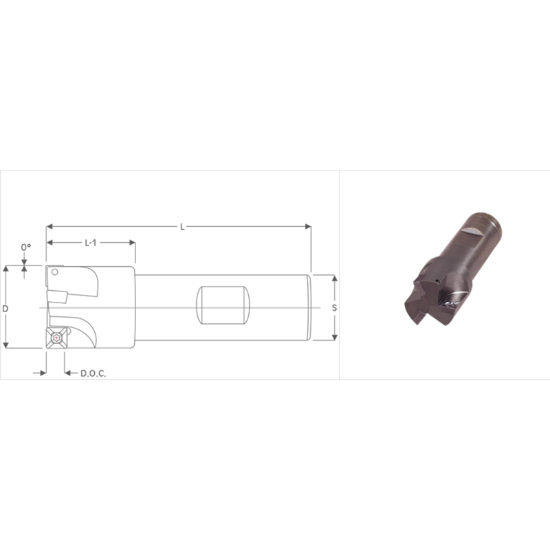

Picture of K-Tool SA-200MF Milling Cutter 90.0° 2.000 Cutter Diameter 0.750 Weldon

K-Tool SA-200MF Milling Cutter 90.0° 2.000 Cutter Diameter 0.750 Weldon

ANSI: SA-200MF

ISO: SA-200MF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSA-200MF
Delivery date: 3-5 days
$247.45

Features And Benefits

Super Alloy Mills - 90° Square Shoulder Within .001 - 4 Cutting Edges Per Insert

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Insert/Tool Tool
Insert Type Positive
Shipping State Pennsylvania
Application Face Milling, Side Milling
Package Size 1
Made In USA Yes
Dimensional Specifications
Cutter Dia 2.0000 50.80MM
Machine Side Connection Type Weldon
Flutes/Inserts 6
Machine Side Connection Size 0.7500 19.05MM
Tool Over Hang 1.2500
Tool Material Steel
Depth Of Cut Max 0.2800
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 314T
