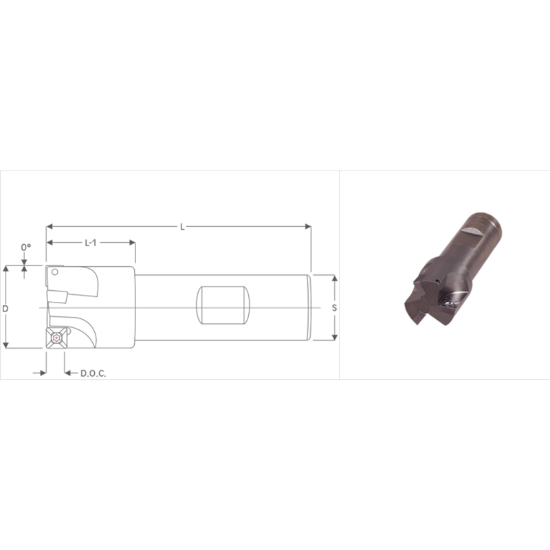

Picture of K-Tool SA-150HS Milling Cutter 90.0° 1.500 Cutter Diameter 1.000 Weldon

K-Tool SA-150HS Milling Cutter 90.0° 1.500 Cutter Diameter 1.000 Weldon

ANSI: SA-150HS

ISO: SA-150HS

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSA-150HS
Delivery date: 3-5 days
$217.97

Features And Benefits

Super Alloy Mills - 90° Square Shoulder Within .001 - 4 Cutting Edges Per Insert

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Shipping State Pennsylvania
Made In USA Yes
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Depth Of Cut Max 0.4650
Flutes/Inserts 3
Tool Over Hang 1.2500
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 3.5000 88.90MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 638T
