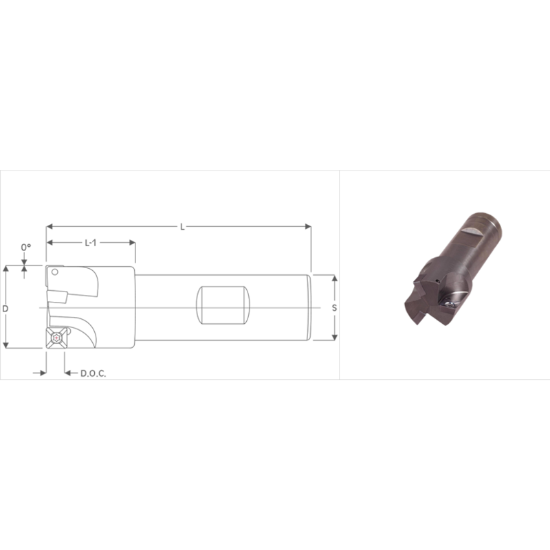

Picture of K-Tool SA-100MF Milling Cutter 90.0° 1.000 Cutter Diameter 0.750 Weldon

K-Tool SA-100MF Milling Cutter 90.0° 1.000 Cutter Diameter 0.750 Weldon

ANSI: SA-100MF

ISO: SA-100MF

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOSA-100MF
Delivery date: 3-5 days
$180.45

Features And Benefits

Super Alloy Mills - 90° Square Shoulder Within .001 - 4 Cutting Edges Per Insert

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA Yes
Insert Application Semi Finishing, Roughing
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.2150
Overall Len 3.0000 76.20MM
Machine Side Connection Type Weldon
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 4
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Tool Over Hang 1.0000
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 314T
