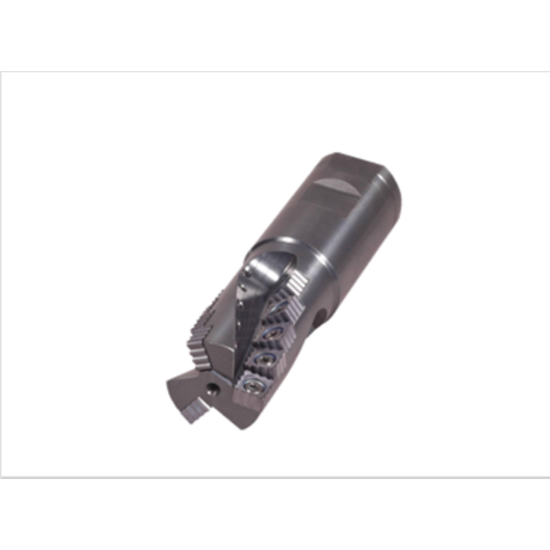

Picture of K-Tool S-125L Milling Cutter 90.0°, Corn Cob 1.235 Cutter Diameter 1.250 Weldon

K-Tool S-125L Milling Cutter 90.0°, Corn Cob 1.235 Cutter Diameter 1.250 Weldon

ANSI: S-125L

ISO: S-125L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOS-125L
Delivery date: 3-5 days
$599.43

Features And Benefits

Serators - Shank Tools - .010 - .020 undersize for finishing - Serrated insert edge reduces tool pressure

Products specifications
Attribute name Attribute value
General Product Information
Application Long Edge Milling, Side Milling
Package Size 1
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Negative
Insert Application Roughing
Dimensional Specifications
Flutes/Inserts 16
Machine Side Connection Type Weldon
Neck Length 3.3750 85.73MM
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Depth Of Cut Max 3.0620
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutter Dia 1.2350 31.37MM
Overall Len 5.6250 142.88MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Fasteners & Connectors
Insert Screw 538T
