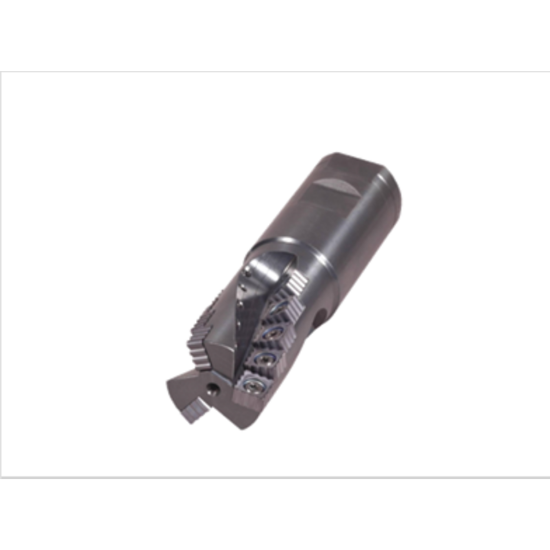

Picture of K-Tool S-100S Milling Cutter 90.0°, Corn Cob 0.985 Cutter Diameter 0.750 Weldon

K-Tool S-100S Milling Cutter 90.0°, Corn Cob 0.985 Cutter Diameter 0.750 Weldon

ANSI: S-100S

ISO: S-100S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOS-100S
Delivery date: 3-5 days
$224.23

Features And Benefits

Serators - Shank Tools - .010 - .020 undersize for finishing - Serrated insert edge reduces tool pressure

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Long Edge Milling
Made In USA Yes
Insert/Tool Tool
Package Size 1
Insert Type Negative
Shipping State Pennsylvania
Insert Application Roughing
Dimensional Specifications
Machine Side Connection Type Weldon
Neck Length 1.1250 28.58MM
Overall Len 3.1250 79.38MM
Machine Side Connection Size 0.7500 19.05MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 0.7800
Cutter Dia 0.9850 25.02MM
Tool Material Steel
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SN
Fasteners & Connectors
Insert Screw 538T
