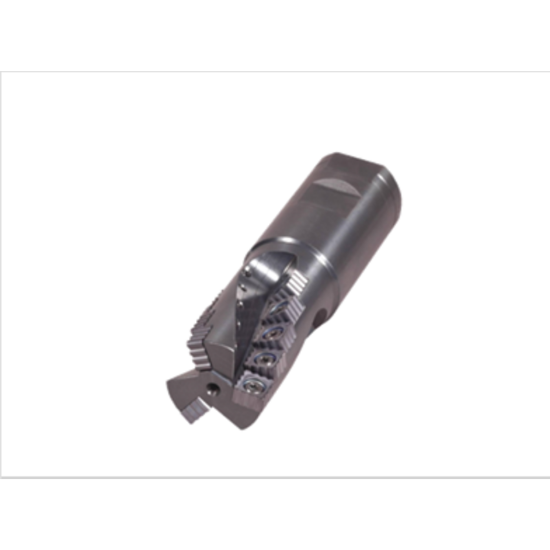

Picture of K-Tool S-100M Milling Cutter 90.0°, Corn Cob 0.985 Cutter Diameter 1.000 Weldon

K-Tool S-100M Milling Cutter 90.0°, Corn Cob 0.985 Cutter Diameter 1.000 Weldon

ANSI: S-100M

ISO: S-100M

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOS-100M
Delivery date: 3-5 days
$311.77

Features And Benefits

Serators - Shank Tools - .010 - .020 undersize for finishing - Serrated insert edge reduces tool pressure

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Negative
Insert Application Roughing
Application Side Milling, Long Edge Milling
Made In USA Yes
Package Size 1
Dimensional Specifications
Cutter Dia 0.9850 25.02MM
Neck Length 1.3750 34.93MM
Tool Material Steel
Machine Side Connection Type Weldon
Flutes/Inserts 6
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 1.1250
Overall Len 3.6250 92.08MM
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 538T
