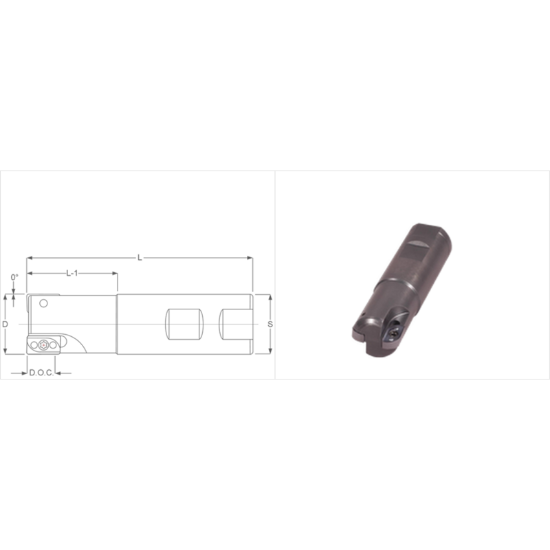

Picture of K-Tool RM-750A Milling Cutter 90.0° 0.750 Cutter Diameter 0.750 Weldon

K-Tool RM-750A Milling Cutter 90.0° 0.750 Cutter Diameter 0.750 Weldon

ANSI: RM-750A

ISO: RM-750A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTORM-750A
Delivery date: 3-5 days
$150.97
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Package Size 1
Insert Application Roughing, Semi Finishing
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Flutes/Inserts 2
Machine Side Connection Type Weldon
Depth Of Cut Max 0.5400
Cutter Dia 0.7500 19.05MM - 3/4
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Neck Length 1.2500 31.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MG
Fasteners & Connectors
Insert Screw 560T
