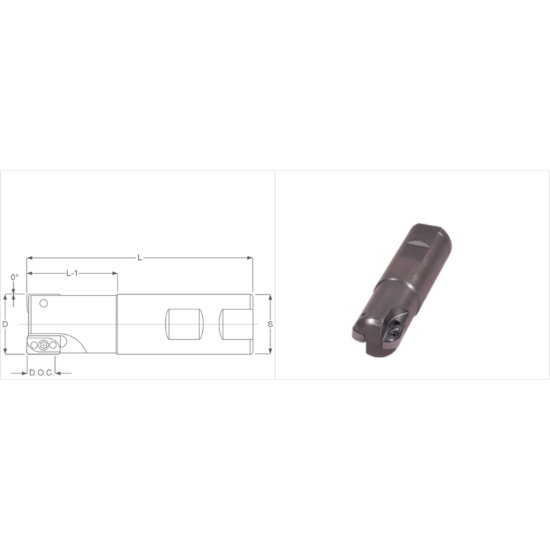

Picture of K-Tool RM-1500B-5 Milling Cutter 90.0° 1.500 Cutter Diameter 1.000 Weldon

K-Tool RM-1500B-5 Milling Cutter 90.0° 1.500 Cutter Diameter 1.000 Weldon

ANSI: RM-1500B-5

ISO: RM-1500B-5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTORM-1500B-5
Delivery date: 3-5 days
$246.56
Products specifications
Attribute name Attribute value
General Product Information
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Application Copy Milling, Face Milling, Side Milling
Package Size 1
Insert Type Positive
Made In USA Yes
Insert/Tool Tool
Dimensional Specifications
Tool Material Steel
Cutter Dia 1.5000 38.10MM - 1-1/2
Neck Length 0.8750 22.23MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Overall Len 4.0000 101.60MM
Depth Of Cut Max 0.5400
Flutes/Inserts 5
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MG
Fasteners & Connectors
Insert Screw 560T
