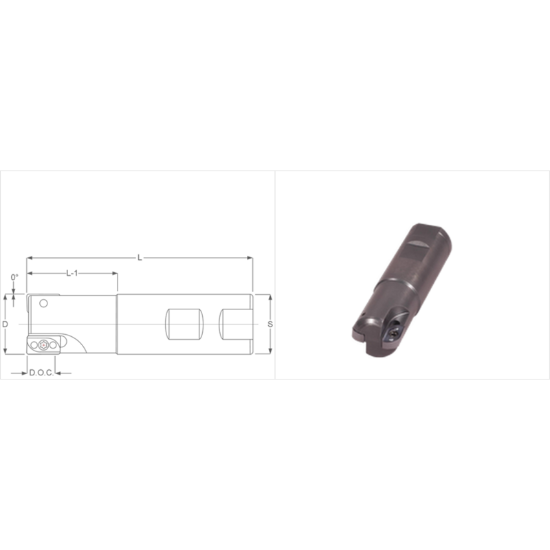

Picture of K-Tool RM-1250B-4 Milling Cutter 90.0° 1.250 Cutter Diameter 1.000 Weldon

K-Tool RM-1250B-4 Milling Cutter 90.0° 1.250 Cutter Diameter 1.000 Weldon

ANSI: RM-1250B-4

ISO: RM-1250B-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTORM-1250B-4
Delivery date: 3-5 days
$203.68
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Side Milling, Copy Milling, Face Milling
Made In USA Yes
Insert Application Semi Finishing, Roughing
Package Size 1
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Depth Of Cut Max 0.5400
Overall Len 4.0000 101.60MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Neck Length 0.8750 22.23MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Flutes/Inserts 4
Tool Material Steel
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MG
Fasteners & Connectors
Insert Screw 560T
