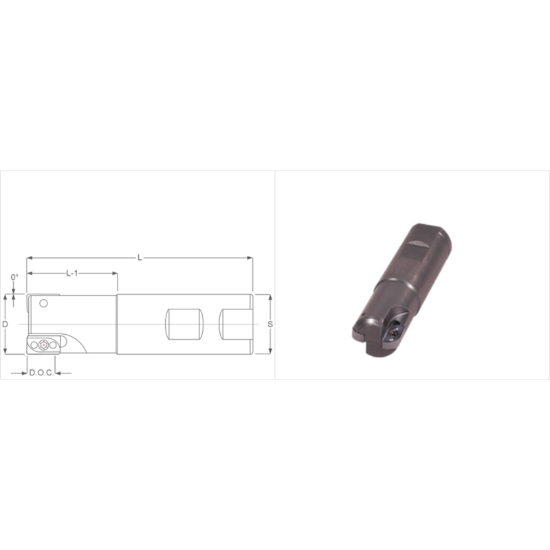

Picture of K-Tool RM-1250A-4 Milling Cutter 90.0° 1.250 Cutter Diameter 1.000 Weldon

K-Tool RM-1250A-4 Milling Cutter 90.0° 1.250 Cutter Diameter 1.000 Weldon

ANSI: RM-1250A-4

ISO: RM-1250A-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTORM-1250A-4
Delivery date: 3-5 days
$203.68
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Face Milling, Side Milling
Insert Application Semi Finishing, Roughing
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Dimensional Specifications
Neck Length 0.8750 22.23MM
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.5400
Flutes/Inserts 4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MG
Fasteners & Connectors
Insert Screw 560T
