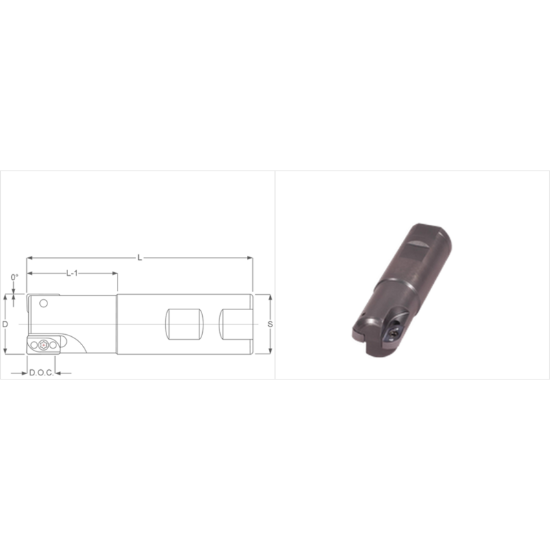

Picture of K-Tool RM-1250A-3 Milling Cutter 90.0° 1.250 Cutter Diameter 1.000 Weldon

K-Tool RM-1250A-3 Milling Cutter 90.0° 1.250 Cutter Diameter 1.000 Weldon

ANSI: RM-1250A-3

ISO: RM-1250A-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTORM-1250A-3
Delivery date: 3-5 days
$181.35
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Application Face Milling, Side Milling
Insert Application Semi Finishing, Roughing
Made In USA Yes
Package Size 1
Dimensional Specifications
Depth Of Cut Max 0.5400
Tool Material Steel
Flutes/Inserts 3
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Neck Length 0.8750 22.23MM
Machine Side Connection Type Weldon
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Insert Style MG
Insert Shape/Cutter Pocket Shape Parallelogram
Fasteners & Connectors
Insert Screw 560T
