Picture of K-Tool RM-1000B-3 Milling Cutter 90.0° 1.000 Cutter Diameter 1.000 Weldon

K-Tool RM-1000B-3 Milling Cutter 90.0° 1.000 Cutter Diameter 1.000 Weldon

ANSI: RM-1000B-3

ISO: RM-1000B-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTORM-1000B-3
Delivery date: 3-5 days
$175.99
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Side Milling, Face Milling, Copy Milling
Made In USA Yes
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Insert/Tool Tool
Package Size 1

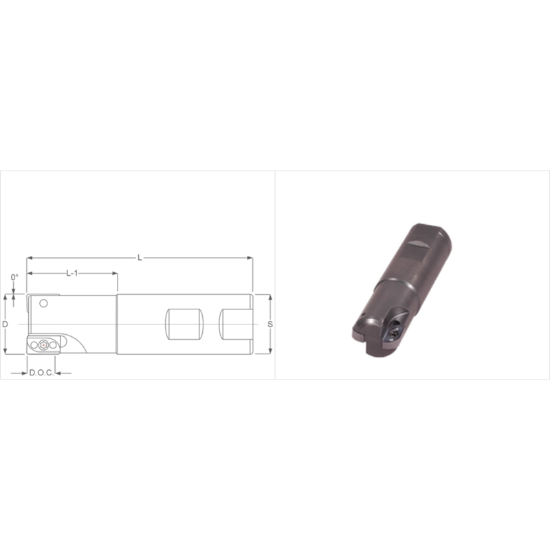

Dimensional Specifications
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 3
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.5400
Neck Length 1.5000 38.10MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Overall Len 3.7500 95.25MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MG
Fasteners & Connectors
Insert Screw 560T
