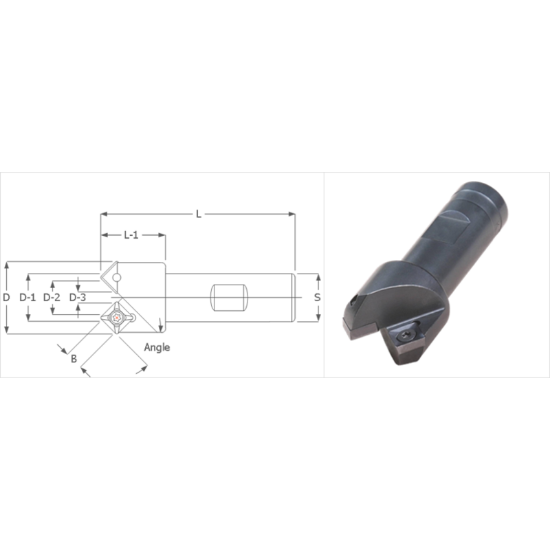

K-Tool OD-1245 Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.1870 55.55MM Cutter Dia
K-Tool OD-1245 Square 45.0°, Chamfer Mill End Mill Weldon 1.0000 Positive 2.1870 55.55MM Cutter Dia
ANSI: OD-1245
ISO: OD-1245
Need Assistance or Service? Please call 262-251-4020
Manufacturer:
K-TOOL
SKU:
KTOOD-1245
Delivery date:
3-5 days
$277.83
Qty:
Add to cart
Add to My List
Add to compare list
Email a friend
Share This:
Features And Benefits
45° OD Chamfer Mills OD Plunge Chamfer Tool
Products specifications
Attribute name
Attribute value
General Product Information
Insert Application
General Purpose
Shipping State
Pennsylvania
Insert/Tool
Tool
Application
Chamfering
Insert Type
Positive
Package Size
1
Made In USA
Yes
Dimensional Specifications
Machine Side Connection Size
1.0000 25.40MM
Overall Len
3.7500 95.25MM
Tool Material
Steel
Cutter Dia
2.1870 55.55MM
Insert Size Ic
53
Neck Length
1.5000 38.10MM
Machine Side Connection Type
Weldon
Cut Dia Min
0.5500 13.97MM
Cut Dia Max
1.2500 31.75MM - 1-1/4
Flutes/Inserts
2
Depth Of Cut Max
0.5630
Shank/Pilot Dia
1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape
Square
Insert Style
SP
Fasteners & Connectors
Insert Screw
838T
