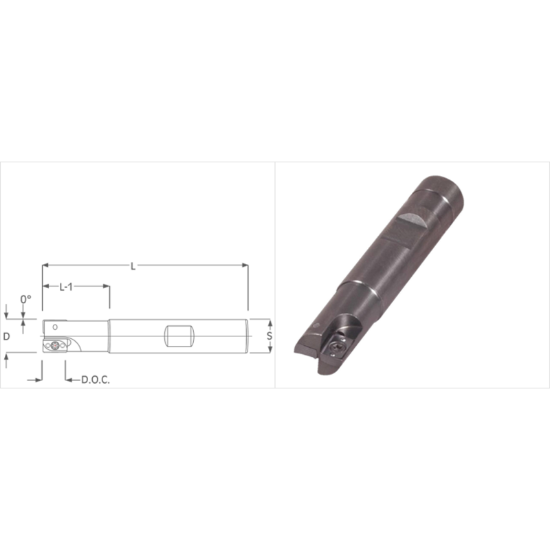

Picture of K-Tool MM-625 Milling Cutter 90.0° 0.625 Cutter Diameter 0.625 Weldon

K-Tool MM-625 Milling Cutter 90.0° 0.625 Cutter Diameter 0.625 Weldon

ANSI: MM-625

ISO: MM-625

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOMM-625
Delivery date: 3-5 days
$151.87

Features And Benefits

Mini Mills - Small diameter indexable endmills - Free cutting - 2 edges per insert

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Insert Application Semi Finishing, Roughing
Made In USA Yes
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 2.6250 66.68MM
Neck Length 0.7500 19.05MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.2180
Flutes/Inserts 4
Tool Material Steel
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MG
Fasteners & Connectors
Insert Screw 164T
