Picture of K-Tool MM-468 Milling Cutter 90.0° 0.468 Cutter Diameter 0.500 Weldon

K-Tool MM-468 Milling Cutter 90.0° 0.468 Cutter Diameter 0.500 Weldon

ANSI: MM-468

ISO: MM-468

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOMM-468
Delivery date: 3-5 days
$95.59

Features And Benefits

Mini Mills - Small diameter indexable endmills - Free cutting - 2 edges per insert

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling
Package Size 1
Insert Type Positive
Made In USA Yes
Shipping State Pennsylvania
Insert Application Semi Finishing, Roughing
Insert/Tool Tool

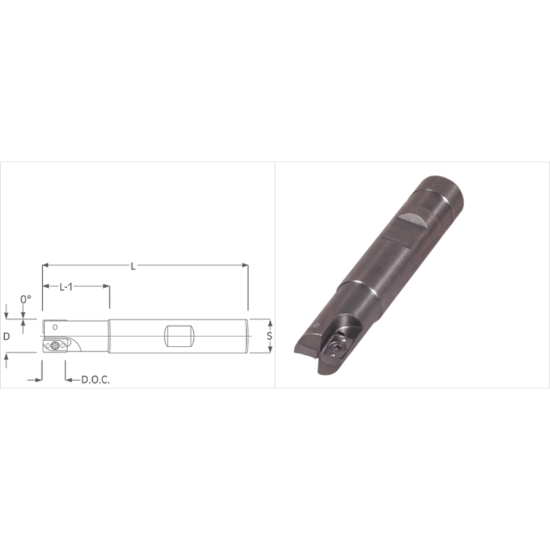

Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Neck Length 0.7500 19.05MM
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Type Weldon
Cutter Dia 0.4680 11.89MM
Depth Of Cut Max 0.2180
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MG
Fasteners & Connectors
Insert Screw 164T
