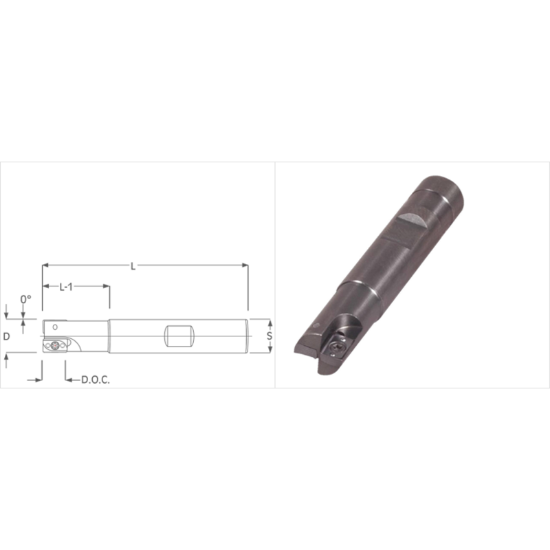

Picture of K-Tool MM-437 Milling Cutter 90.0° 0.437 Cutter Diameter 0.500 Weldon

K-Tool MM-437 Milling Cutter 90.0° 0.437 Cutter Diameter 0.500 Weldon

ANSI: MM-437

ISO: MM-437

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOMM-437
Delivery date: 3-5 days
$95.59

Features And Benefits

Mini Mills - Small diameter indexable endmills - Free cutting - 2 edges per insert

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Shipping State Pennsylvania
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Application Face Milling, Side Milling
Made In USA Yes
Dimensional Specifications
Tool Material Steel
Cutter Dia 0.4370 11.10MM
Flutes/Inserts 2
Neck Length 0.7500 19.05MM
Machine Side Connection Type Weldon
Machine Side Connection Size 0.5000 12.70MM
Overall Len 2.5000 63.50MM
Depth Of Cut Max 0.2180
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MG
Fasteners & Connectors
Insert Screw 164T
