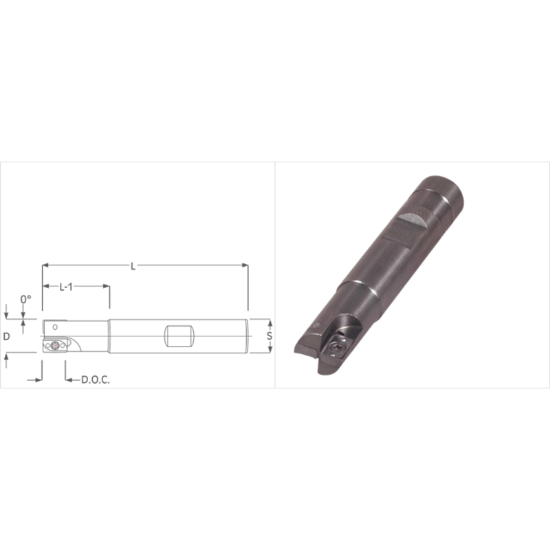

Picture of K-Tool MM-312 Milling Cutter 90.0° 0.312 Cutter Diameter 0.375 Weldon

K-Tool MM-312 Milling Cutter 90.0° 0.312 Cutter Diameter 0.375 Weldon

ANSI: MM-312

ISO: MM-312

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOMM-312
Delivery date: 3-5 days
$70.57

Features And Benefits

Mini Mills - Small diameter indexable endmills - Free cutting - 2 edges per insert

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Face Milling
Made In USA Yes
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Overall Len 2.0300 51.56MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Dia 0.3120 7.92MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.2180
Machine Side Connection Size 0.3750 9.53MM
Neck Length 0.5000 12.70MM
Flutes/Inserts 1
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Parallelogram
Insert Style MG
Inter/Extern External
Fasteners & Connectors
Insert Screw 164T
