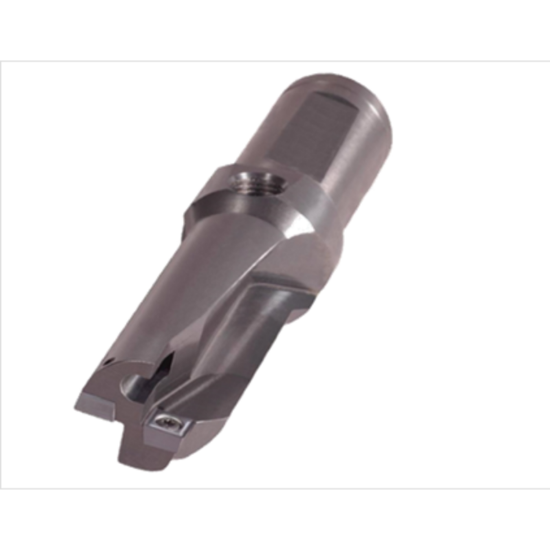

Picture of K-Tool FB-1437 Multi Insert Drill 1.437 Cutter Diameter 1.250 Weldon

K-Tool FB-1437 Multi Insert Drill 1.437 Cutter Diameter 1.250 Weldon

ANSI: FB-1437

ISO: FB-1437

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOFB-1437
Delivery date: 3-5 days
$314.45
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Multi Insert Drilling, Flat Bottom Drilling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application General Purpose
Made In USA Yes
Package Size 1
Dimensional Specifications
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.4370 36.50MM
Machine Side Connection Type Weldon
Overall Len 6.2500 158.75MM
Drill DOC 2.8750
Depth Of Cut Max 2.8750
Tool Over Hang 4.0000
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style SP
Inter/Extern Int / Ext
Insert Shape/Cutter Pocket Shape Square
Cool Sply Type Through
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 638T
