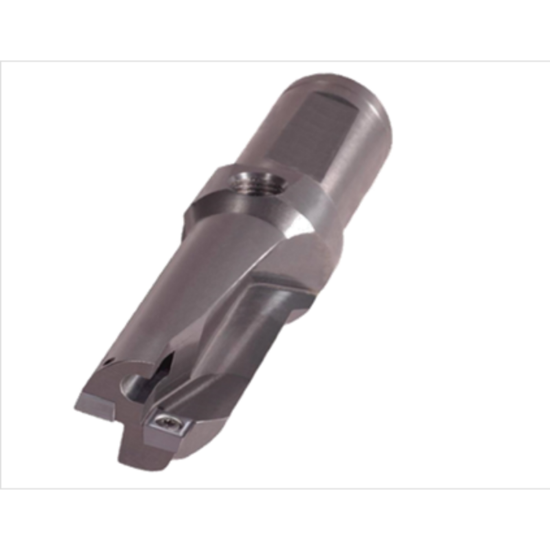

Picture of K-Tool FB-1375 Multi Insert Drill 1.375 Cutter Diameter 1.250 Weldon

K-Tool FB-1375 Multi Insert Drill 1.375 Cutter Diameter 1.250 Weldon

ANSI: FB-1375

ISO: FB-1375

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOFB-1375
Delivery date: 3-5 days
$301.05
Products specifications
Attribute name Attribute value
General Product Information
Application Flat Bottom Drilling, Multi Insert Drilling
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA Yes
Insert Application General Purpose
Insert Type Positive
Package Size 1
Dimensional Specifications
Depth Of Cut Max 2.7500
Drill DOC 2.7500
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 6.0000 152.40MM
Tool Over Hang 3.7500
Flutes/Inserts 2
Cutter Dia 1.3750 34.93MM - 1-3/8
Machine Side Connection Type Weldon
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SP
Inter/Extern Int / Ext
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 538T
