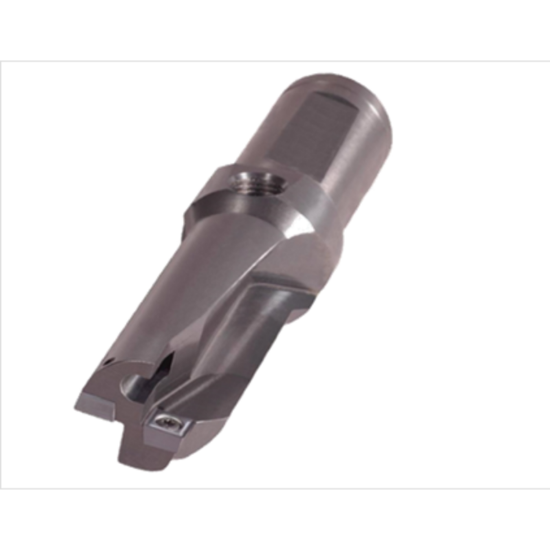

Picture of K-Tool FB-1312 Multi Insert Drill 1.312 Cutter Diameter 1.250 Weldon

K-Tool FB-1312 Multi Insert Drill 1.312 Cutter Diameter 1.250 Weldon

ANSI: FB-1312

ISO: FB-1312

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOFB-1312
Delivery date: 3-5 days
$301.05
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Made In USA Yes
Insert Type Positive
Application Multi Insert Drilling, Flat Bottom Drilling
Insert Application General Purpose
Dimensional Specifications
Flutes/Inserts 2
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Steel
Tool Over Hang 3.7500
Depth Of Cut Max 2.6250
Machine Side Connection Type Weldon
Overall Len 6.0000 152.40MM
Cutter Dia 1.3120 33.32MM
Machine Side Connection Size 1.2500 31.75MM
Drill DOC 2.6250
Cutting & Machining Properties
Coolant Thru Yes
Insert Style SP
Cool Sply Type Through
Inter/Extern Int / Ext
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 538T
