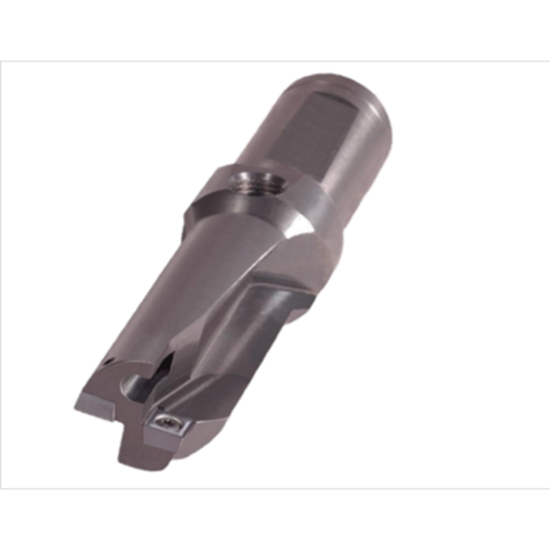

Picture of K-Tool FB-1281-3 Multi Insert Drill 1.281 Cutter Diameter 1.250 Weldon

K-Tool FB-1281-3 Multi Insert Drill 1.281 Cutter Diameter 1.250 Weldon

ANSI: FB-1281-3

ISO: FB-1281-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOFB-1281-3
Delivery date: 3-5 days
$326.96
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Multi Insert Drilling, Flat Bottom Drilling
Package Size 1
Made In USA Yes
Insert Type Positive
Insert Application General Purpose
Shipping State Pennsylvania
Dimensional Specifications
Flutes/Inserts 2
Cutter Dia 1.2813 32.54MM - 1-9/32
Machine Side Connection Type Weldon
Overall Len 6.0000 152.40MM
Tool Over Hang 3.7500
Drill DOC 3.8430
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Depth Of Cut Max 3.8430
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Square
Inter/Extern Int / Ext
Cool Sply Type Through
Insert Style SP
Fasteners & Connectors
Insert Screw 538T
