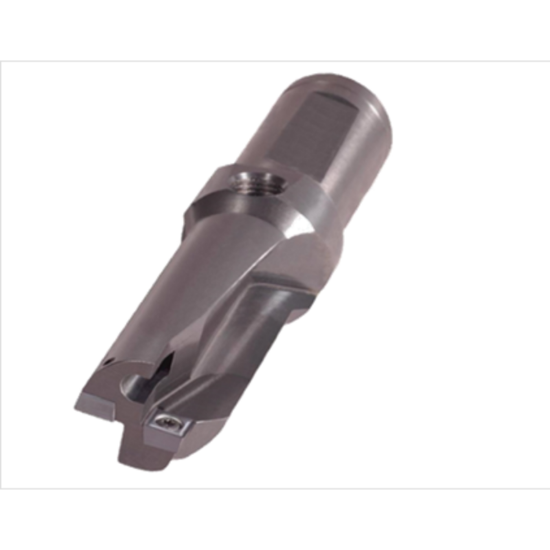

Picture of K-Tool FB-1250-3 Multi Insert Drill 1.250 Cutter Diameter 1.250 Weldon

K-Tool FB-1250-3 Multi Insert Drill 1.250 Cutter Diameter 1.250 Weldon

ANSI: FB-1250-3

ISO: FB-1250-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOFB-1250-3
Delivery date: 3-5 days
$320.71
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Multi Insert Drilling, Flat Bottom Drilling
Package Size 1
Insert Application General Purpose
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Depth Of Cut Max 3.7500
Flutes/Inserts 2
Drill DOC 3.7500
Overall Len 7.5000 190.50MM
Tool Over Hang 5.2500
Machine Side Connection Type Weldon
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Coolant Thru Yes
Inter/Extern Int / Ext
Fasteners & Connectors
Insert Screw 538T
