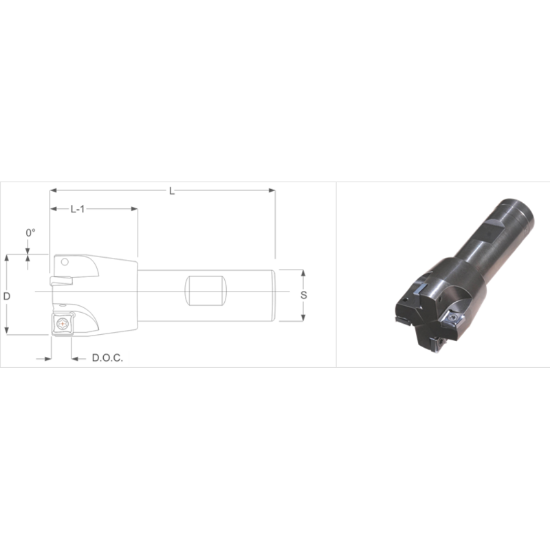

Picture of K-Tool ESP-1000-2 Milling Cutter 90.0° 1.000 Cutter Diameter 0.750 Weldon

K-Tool ESP-1000-2 Milling Cutter 90.0° 1.000 Cutter Diameter 0.750 Weldon

ANSI: ESP-1000-2

ISO: ESP-1000-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTOESP-1000-2
Delivery date: 3-5 days
$180.45
Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Negative
Shipping State Pennsylvania
Insert Application Roughing, Semi Finishing
Application Face Milling, Side Milling
Package Size 1
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Depth Of Cut Max 0.2800
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Overall Len 3.0000 76.20MM
Flutes/Inserts 3
Cutting & Machining Properties
Insert Style SN
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 314T
