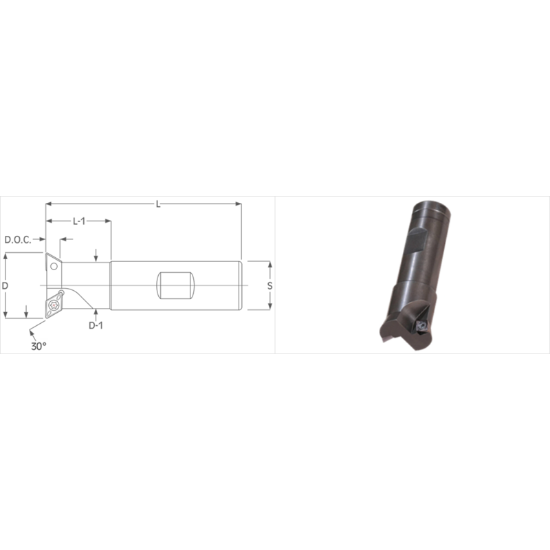

Picture of K-Tool DT-1075 Milling Cutter 30.0° 1.000 Cutter Diameter 0.750 Weldon

K-Tool DT-1075 Milling Cutter 30.0° 1.000 Cutter Diameter 0.750 Weldon

ANSI: DT-1075

ISO: DT-1075

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODT-1075
Delivery date: 3-5 days
$168.84

Details

GENERAL PURPOSE CHAFER TOOL USING FOUR CORNER INSERT. INSERT FITS MANY DIFFERENT TOOLS.

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Finishing, Semi Finishing
Insert Type Positive
Package Size 1
Shipping State Pennsylvania
Insert/Tool Tool
Application Dovetail Milling
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Insert Size Ic 21
Cut Dia Max 1.0000 25.40MM
Neck Dia 0.7000
Machine Side Connection Type Weldon
Cutter Dia 1.0000 25.40MM
Tool Material Steel
Neck Length 1.0000 25.40MM
Machine Side Connection Size 0.7500 19.05MM
Overall Len 3.0000 76.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DD
Fasteners & Connectors
Insert Screw 314T
