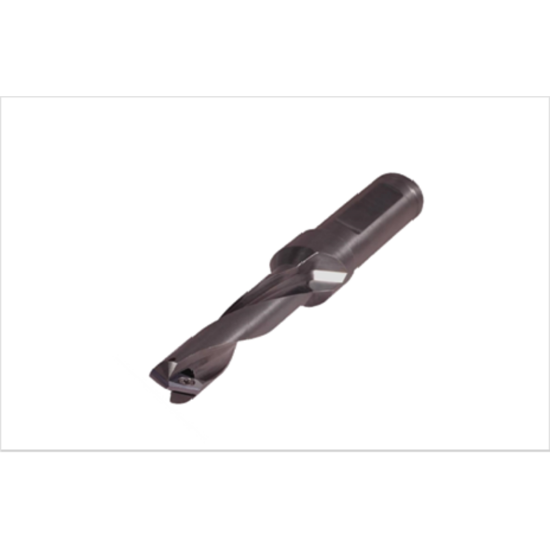

Picture of K-Tool DSL-101-113L Single Insert Drill 1.000 Weldon

K-Tool DSL-101-113L Single Insert Drill 1.000 Weldon

ANSI: DSL-101-113L

ISO: DSL-101-113L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODSL-101-113L
Delivery date: 3-5 days
$311.77
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Application Single Insert Drilling, Insert Drilling
Insert Application General Purpose
Insert Type Positive
Dimensional Specifications
Overall Len 9.0000 228.60MM
Machine Side Connection Type Weldon
Tool Material Steel
Drill DOC 5.0000
Depth Of Cut Max 5.0000
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cut Dia Min 1.0110 25.68MM
Cut Dia Max 1.1350 28.83MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Inter/Extern Int / Ext
Coolant Thru Yes
Insert Style DI
Cool Sply Type Through
Fasteners & Connectors
Insert Screw 638T
