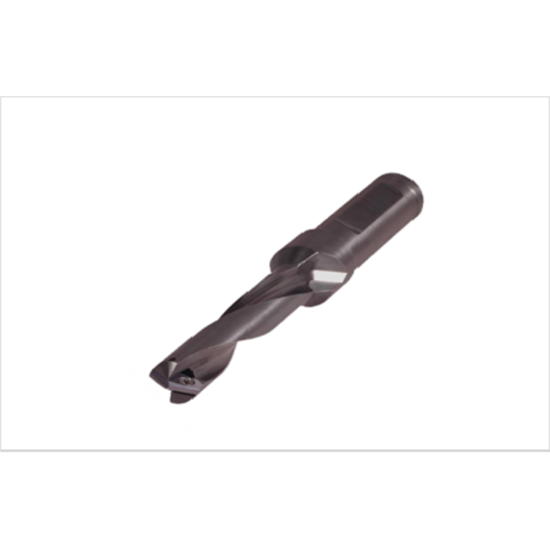

Picture of K-Tool DS-76-84XL Single Insert Drill 1.000 Weldon

K-Tool DS-76-84XL Single Insert Drill 1.000 Weldon

ANSI: DS-76-84XL

ISO: DS-76-84XL

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODS-76-84XL
Delivery date: 3-5 days
$337.68
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert/Tool Tool
Application Single Insert Drilling, Insert Drilling
Insert Application General Purpose
Shipping State Pennsylvania
Made In USA Yes
Insert Type Positive
Dimensional Specifications
Overall Len 9.9500 252.73MM
Depth Of Cut Max 6.0000
Tool Material Steel
Drill DOC 6.0000
Cut Dia Max 0.8400 21.34MM
Machine Side Connection Type Weldon
Machine Side Connection Size 1.0000 25.40MM
Cut Dia Min 0.7610 19.33MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru Yes
Inter/Extern Int / Ext
Insert Style DI
Cool Sply Type Through
Fasteners & Connectors
Insert Screw 560T
