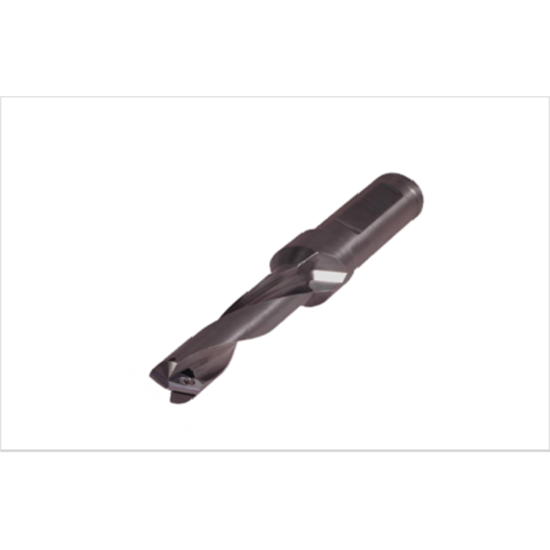

Picture of K-Tool DS-76-84L Single Insert Drill 1.000 Weldon

K-Tool DS-76-84L Single Insert Drill 1.000 Weldon

ANSI: DS-76-84L

ISO: DS-76-84L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODS-76-84L
Delivery date: 3-5 days
$283.19
Products specifications
Attribute name Attribute value
General Product Information
Application Single Insert Drilling, Insert Drilling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application General Purpose
Insert Type Positive
Package Size 1
Made In USA Yes
Dimensional Specifications
Cut Dia Min 0.7610 19.33MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 4.0000
Tool Material Steel
Overall Len 7.9500 201.93MM
Drill DOC 4.0000
Cut Dia Max 0.8400 21.34MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style DI
Coolant Thru Yes
Inter/Extern Int / Ext
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape Flat Blade
Fasteners & Connectors
Insert Screw 560T
