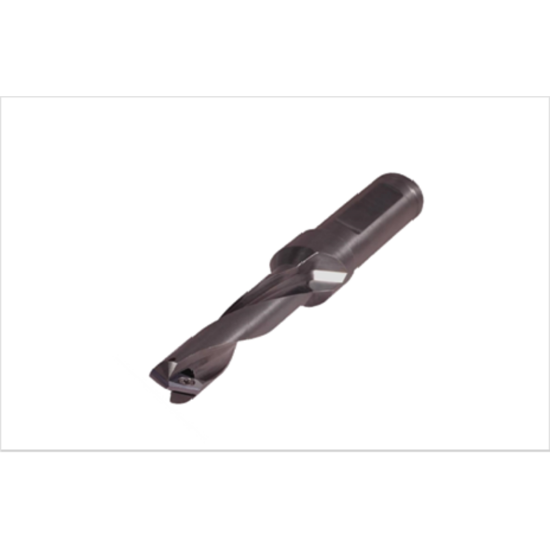

Picture of K-Tool DS-69-76S Single Insert Drill 0.750 Weldon

K-Tool DS-69-76S Single Insert Drill 0.750 Weldon

ANSI: DS-69-76S

ISO: DS-69-76S

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODS-69-76S
Delivery date: 3-5 days
$215.29
Products specifications
Attribute name Attribute value
General Product Information
Application Insert Drilling, Single Insert Drilling
Insert/Tool Tool
Insert Type Positive
Made In USA Yes
Package Size 1
Insert Application General Purpose
Shipping State Pennsylvania
Dimensional Specifications
Cut Dia Max 0.7600 19.30MM
Drill DOC 1.5000
Cut Dia Min 0.6960 17.68MM
Machine Side Connection Size 0.7500 19.05MM
Overall Len 5.0000 127.00MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Depth Of Cut Max 1.5000
Machine Side Connection Type Weldon
Tool Material Steel
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern Internal
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape Flat Blade
Insert Style DI
Fasteners & Connectors
Insert Screw 314T
