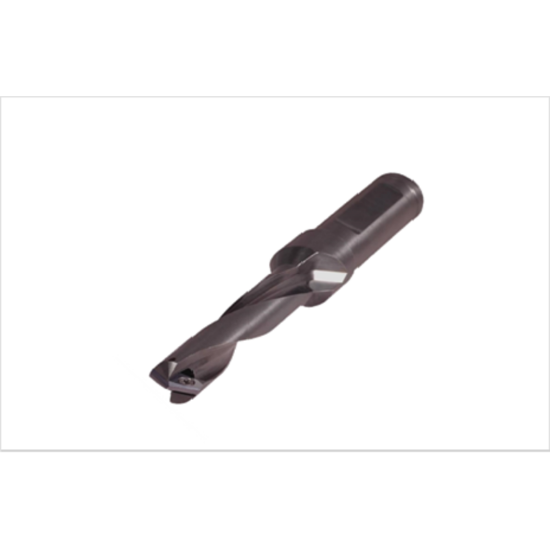

Picture of K-Tool DS-57-63L Single Insert Drill 0.750 Weldon

K-Tool DS-57-63L Single Insert Drill 0.750 Weldon

ANSI: DS-57-63L

ISO: DS-57-63L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODS-57-63L
Delivery date: 3-5 days
$243.88
Products specifications
Attribute name Attribute value
General Product Information
Application Insert Drilling, Single Insert Drilling
Insert Application General Purpose
Shipping State Pennsylvania
Made In USA Yes
Insert Type Positive
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Depth Of Cut Max 3.0000
Drill DOC 3.0000
Tool Material Steel
Cut Dia Min 0.5710 14.50MM
Cut Dia Max 0.6300 16.00MM
Machine Side Connection Type Weldon
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 6.5000 165.10MM
Cutting & Machining Properties
Insert Style DI
Inter/Extern Internal
Cool Sply Type Through
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru Yes
Fasteners & Connectors
Insert Screw 314T
Only registered users can write reviews
