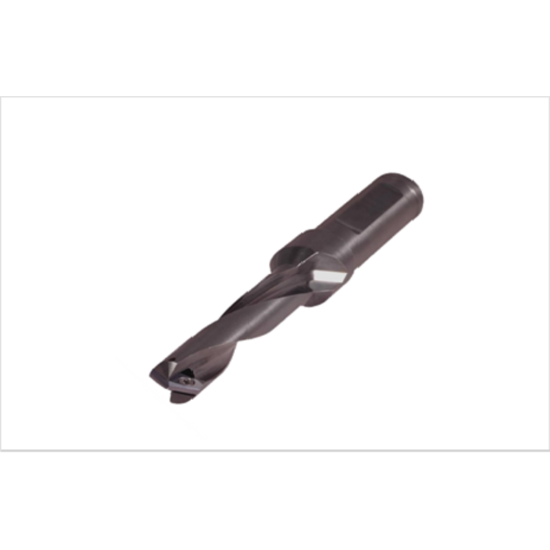

Picture of K-Tool DS-138-151L Single Insert Drill 1.250 Weldon

K-Tool DS-138-151L Single Insert Drill 1.250 Weldon

ANSI: DS-138-151L

ISO: DS-138-151L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODS-138-151L
Delivery date: 3-5 days
$355.55
Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Application Single Insert Drilling, Insert Drilling
Insert Application General Purpose
Dimensional Specifications
Depth Of Cut Max 6.0000
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Drill DOC 6.0000
Machine Side Connection Type Weldon
Cut Dia Min 1.3860 35.20MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cut Dia Max 1.5100 38.35MM
Overall Len 10.2500 260.35MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Flat Blade
Cool Sply Type Through
Inter/Extern Int / Ext
Coolant Thru Yes
Insert Style DI
Fasteners & Connectors
Insert Screw 638T
