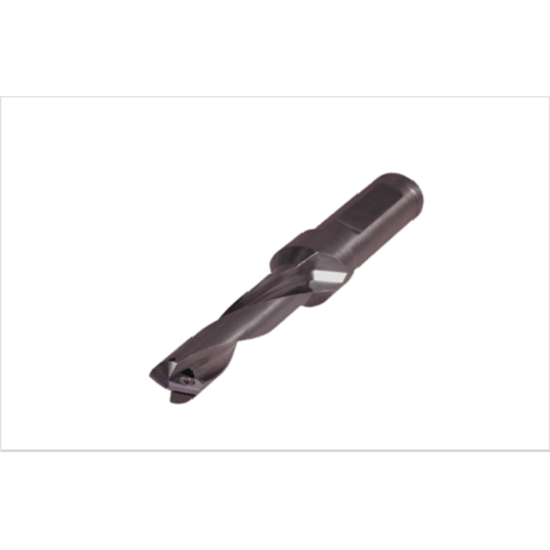

Picture of K-Tool DS-126-138L Single Insert Drill 1.250 Weldon

K-Tool DS-126-138L Single Insert Drill 1.250 Weldon

ANSI: DS-126-138L

ISO: DS-126-138L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODS-126-138L
Delivery date: 3-5 days
$355.55
Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Insert Drilling, Single Insert Drilling
Insert Application General Purpose
Shipping State Pennsylvania
Package Size 1
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Cut Dia Min 1.2610 32.03MM
Cut Dia Max 1.3850 35.18MM
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Type Weldon
Depth Of Cut Max 6.0000
Tool Material Steel
Machine Side Connection Size 1.2500 31.75MM
Overall Len 10.2500 260.35MM
Drill DOC 6.0000
Cutting & Machining Properties
Cool Sply Type Through
Insert Style DI
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru Yes
Inter/Extern Int / Ext
Fasteners & Connectors
Insert Screw 638T
