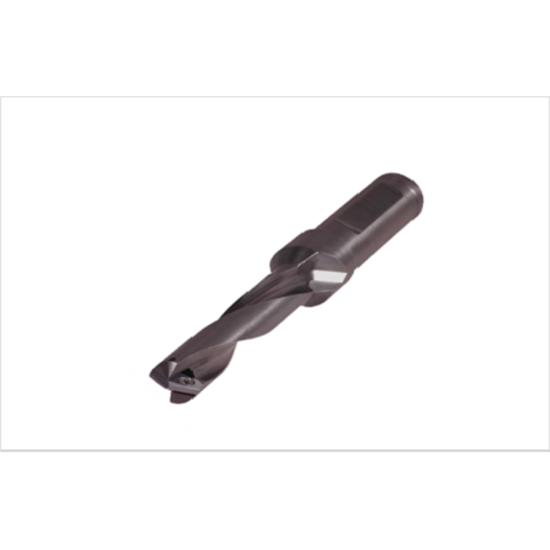

Picture of K-Tool DS-113-126L Single Insert Drill 1.000 Weldon

K-Tool DS-113-126L Single Insert Drill 1.000 Weldon

ANSI: DS-113-126L

ISO: DS-113-126L

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODS-113-126L
Delivery date: 3-5 days
Call (262) 251-4020 for pricing
Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Insert Drilling, Single Insert Drilling
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Pennsylvania
Insert Application General Purpose
Dimensional Specifications
Machine Side Connection Type Weldon
Depth Of Cut Max 5.0000
Overall Len 9.0000 228.60MM
Cut Dia Min 1.1360 28.85MM
Drill DOC 5.0000
Cut Dia Max 1.2600 32.00MM
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Inter/Extern Int / Ext
Insert Shape/Cutter Pocket Shape Flat Blade
Coolant Thru Yes
Insert Style DI
Cool Sply Type Through
Fasteners & Connectors
Insert Screw 638T
