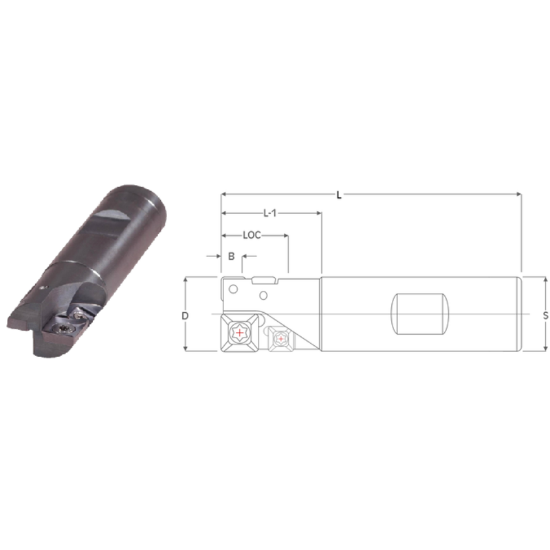

Picture of K-Tool DMTL-100 Milling Cutter 90.0°, Corn Cob 1.000 Cutter Diameter 1.000 Weldon

K-Tool DMTL-100 Milling Cutter 90.0°, Corn Cob 1.000 Cutter Diameter 1.000 Weldon

ANSI: DMTL-100

ISO: DMTL-100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODMTL-100
Delivery date: 3-5 days
$305.52

Features And Benefits

2 Effective Center Cutting Long Edge End Mills 2 Flutes Effective when Milling or Counterboring - Center cutting - Cuts a flat bottom within .001 Inserts (3) SPEB-222P & (1) SPEB-422PA

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing
Insert Type Positive
Application Side Milling, Long Edge Milling
Package Size 1
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Dimensional Specifications
Cutter Dia 1.0000 25.40MM
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.9000
Neck Length 1.5000 38.10MM
Flutes/Inserts 4
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Tool Material Steel
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 638T,314T
