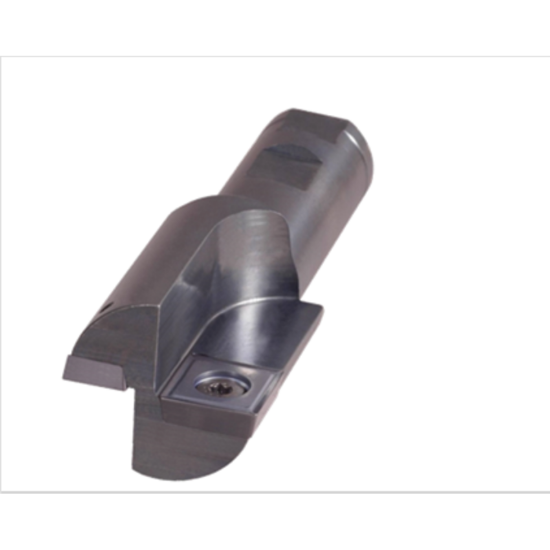

Picture of K-Tool DMT-1250 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter 1.000 Weldon

K-Tool DMT-1250 Milling Cutter 90.0°, Drill Mill 1.250 Cutter Diameter 1.000 Weldon

ANSI: DMT-1250

ISO: DMT-1250

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODMT-1250
Delivery date: 3-5 days
$196.53

Important Notes

IMPORTANT: When ordering inserts Order all Positive Top Inserts When Ramping or Pocket Milling Order all Chipbreaker Inserts When Drilling or C-Boring

Features And Benefits

2 Effective Center Cutting Endmills Double the feed rate when used for: Milling - Ramping - Helical Interpolations - Slotting Requires (1) SPEB-432PA and (1) SPEB-532PA OR (1) SPEB-432CB and (1) SPEB-532CB

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Roughing, Semi Finishing
Application Drilling, Pocket Milling, Slot Milling, Ramp Milling, Side Milling, Plunge Milling, Shoulder Milling
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Made In USA Yes
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Tool Material Steel
Cutter Dia 1.2500 31.75MM - 1-1/4
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Depth Of Cut Max 0.4650
Overall Len 4.0000 101.60MM
Machine Side Connection Type Weldon
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 638T,838T
