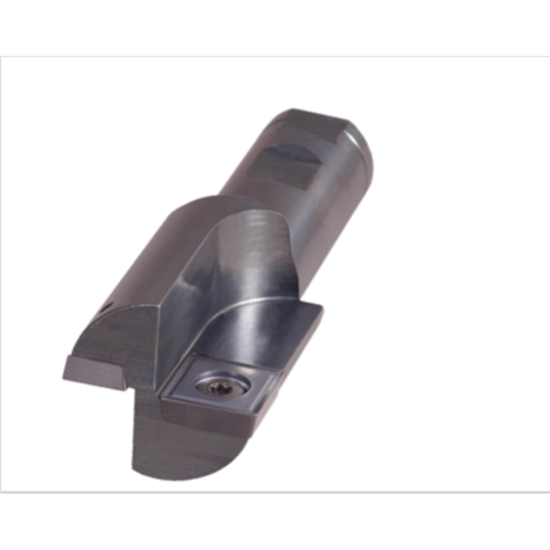

Picture of K-Tool DMT-100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter 1.000 Weldon

K-Tool DMT-100 Milling Cutter 90.0°, Drill Mill 1.000 Cutter Diameter 1.000 Weldon

ANSI: DMT-100

ISO: DMT-100

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODMT-100
Delivery date: 3-5 days
$185.81

Important Notes

IMPORTANT: When ordering inserts Order all Positive Top Inserts When Ramping or Pocket Milling Order all Chipbreaker Inserts When Drilling or C-Boring

Features And Benefits

2 Effective Center Cutting Endmills Double the feed rate when used for: Milling - Ramping - Helical Interpolations - Slotting Requires (1) SPEB-422PA and (1) SPEB-322P OR (1) SPEB-422CB and (1) SPEB-322CB

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Drilling, Plunge Milling, Pocket Milling, Shoulder Milling, Slot Milling
Insert Application Semi Finishing, Roughing
Made In USA Yes
Package Size 1
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Overall Len 3.6250 92.08MM
Machine Side Connection Type Weldon
Cutter Dia 1.0000 25.40MM
Flutes/Inserts 2
Depth Of Cut Max 0.3400
Neck Length 1.3750 34.93MM
Tool Material Steel
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 638T,414T
