Picture of K-Tool DM-937 Milling Cutter 90.0°, Drill Mill 0.937 Cutter Diameter 0.750 Weldon

K-Tool DM-937 Milling Cutter 90.0°, Drill Mill 0.937 Cutter Diameter 0.750 Weldon

ANSI: DM-937

ISO: DM-937

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-937
Delivery date: 3-5 days
$106.31

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Plunge Milling, Shoulder Milling, Ramp Milling, Slot Milling, Drilling, Pocket Milling
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Package Size 1

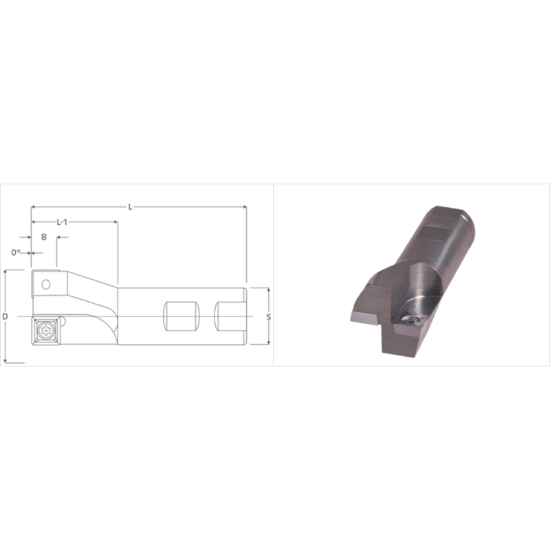

Dimensional Specifications
Machine Side Connection Type Weldon
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Neck Length 1.2500 31.75MM
Cutter Dia 0.9370 23.80MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Overall Len 3.2500 82.55MM
Depth Of Cut Max 0.2800
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 314T
