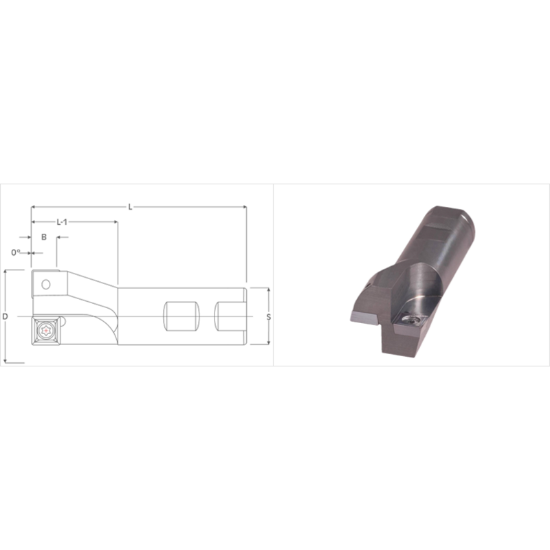

K-Tool DM-812 Milling Cutter 90.0°, Drill Mill 0.812 Cutter Diameter 0.750 Weldon

ANSI: DM-812

ISO: DM-812

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-812
Delivery date: 3-5 days
$103.63

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Pocket Milling, Plunge Milling, Shoulder Milling, Slot Milling, Ramp Milling, Side Milling, Drilling
Shipping State Pennsylvania
Package Size 1
Insert Application Semi Finishing, Roughing
Insert Type Positive
Made In USA Yes
Dimensional Specifications
Tool Material Steel
Neck Length 1.0000 25.40MM
Machine Side Connection Size 0.7500 19.05MM
Depth Of Cut Max 0.2800
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Machine Side Connection Type Weldon
Cutter Dia 0.8120 20.62MM
Overall Len 3.0000 76.20MM
Flutes/Inserts 2
Cutting & Machining Properties
Insert Style SP
Insert Shape/Cutter Pocket Shape Square
Fasteners & Connectors
Insert Screw 314T
