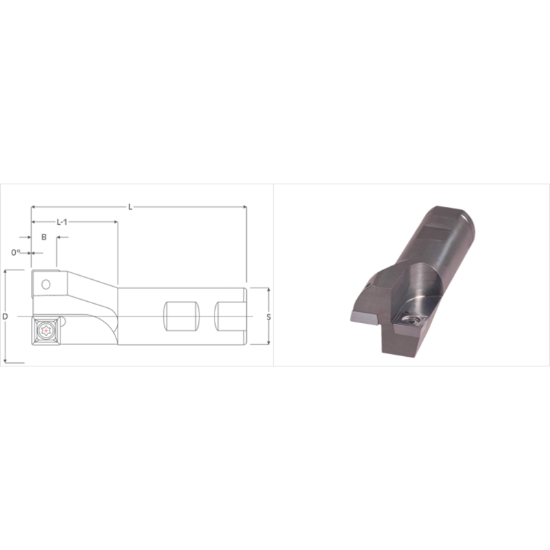

Picture of K-Tool DM-593 Milling Cutter 90.0°, Drill Mill 0.593 Cutter Diameter 0.750 Weldon

K-Tool DM-593 Milling Cutter 90.0°, Drill Mill 0.593 Cutter Diameter 0.750 Weldon

ANSI: DM-593

ISO: DM-593

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-593
Delivery date: 3-5 days
$101.84

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Application Ramp Milling, Side Milling, Drilling, Plunge Milling, Pocket Milling, Shoulder Milling, Slot Milling
Insert Application Roughing, Semi Finishing
Package Size 1
Made In USA Yes
Insert/Tool Tool
Shipping State Pennsylvania
Insert Type Positive
Dimensional Specifications
Overall Len 3.0000 76.20MM
Cutter Dia 0.5930 15.06MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 2
Neck Length 1.0000 25.40MM
Machine Side Connection Type Weldon
Depth Of Cut Max 0.1700
Tool Material Steel
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 164T
