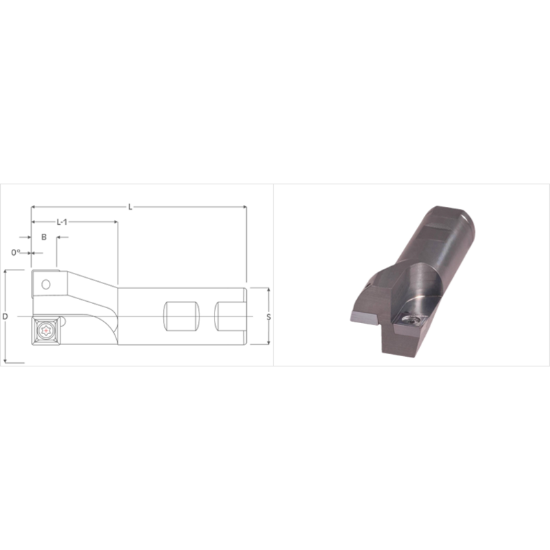

Picture of K-Tool DM-502 Milling Cutter 90.0°, Drill Mill 0.500 Cutter Diameter 0.500 Weldon

K-Tool DM-502 Milling Cutter 90.0°, Drill Mill 0.500 Cutter Diameter 0.500 Weldon

ANSI: DM-502

ISO: DM-502

Need Assistance or Service? Please call 262-251-4020

Manufacturer: K-TOOL
SKU: KTODM-502
Delivery date: 3-5 days
$101.84

Features And Benefits

Cuts a flat bottom within .001 - Uses the same insert in both pockets - Center cutting - Drill from solid or ramp into a part at any angle - Ideal for pocket milling - Drilling shallow depth flat bottom holes - 4 cutting edges per insert

Details

Drill Mill Twins Can Be Modified In 2 - 3 Working Days Modifications Include: - Reduced Shank Diameter - Add Coolant Thru

Products specifications
Attribute name Attribute value
General Product Information
Insert Application Semi Finishing, Roughing
Application Side Milling, Ramp Milling, Slot Milling, Plunge Milling, Shoulder Milling, Drilling, Pocket Milling
Made In USA Yes
Insert Type Positive
Insert/Tool Tool
Package Size 1
Shipping State Pennsylvania
Dimensional Specifications
Neck Length 0.8750 22.23MM
Machine Side Connection Type Weldon
Overall Len 2.6250 66.68MM
Machine Side Connection Size 0.5000 12.70MM
Depth Of Cut Max 0.1700
Cutter Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Square
Insert Style SP
Fasteners & Connectors
Insert Screw 164T
